Five axis CNC tool grinder grinding wheel
Advantages of 5-axis CNC tool grinder grinding wheel products: Our company's CNC grinding wheels are
Category：
Contact us
Product description

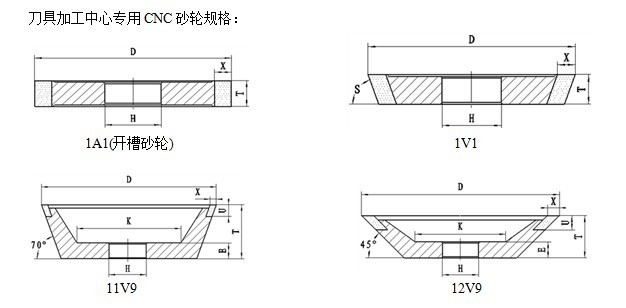

| No. | model | Diameter | Total | Aperture (H) | width (X) | thickness (U) |
| 1 | 14A1/3A1 | 100/125 | 20/31.75 | 10 | 2 | |
| 2 | 14A1/3A1 | 100/125 | 20/31.75 | 10 | 3 | |
| 3 | 14A1/3A1/1A1 | 100/125 | 20/31.75 | 10 | 4 | |
| 4 | 14A1/3A1/1A1 | 100/125 | 8 | 20/31.75 | 10 | 5 |
| 5 | 14A1/3A1/1A1 | 100/125 | 8 | 20/31.75 | 10 | 6 |
| 6 | 14A1/3A1/1A1 | 100/125 | 8 | 20/31.75 | 10 | 7 |
| 7 | 1A1 | 100/125 | 8 | 20/31.75 | 10 | 8 |
| 8 | 1A1 | 100/125 | 9 | 20/31.75 | 10 | 9 |
| 9 | 1A1 | 100/125 | 10 | 20/31.75 | 10 | 10 |
| 10 | 1A1 | 100/125 | 11 | 20/31.75 | 10 | 11 |
| 11 | 1A1 | 100/125 | 12 | 20/31.75 | 10 | 12 |
| 12 | 11V9/70° | 100 | 35 | 20/31.75 | 4 | 10 |
| 13 | 12V9/45° | 125 | 30 | 20/31.75 | 4 | 10 |

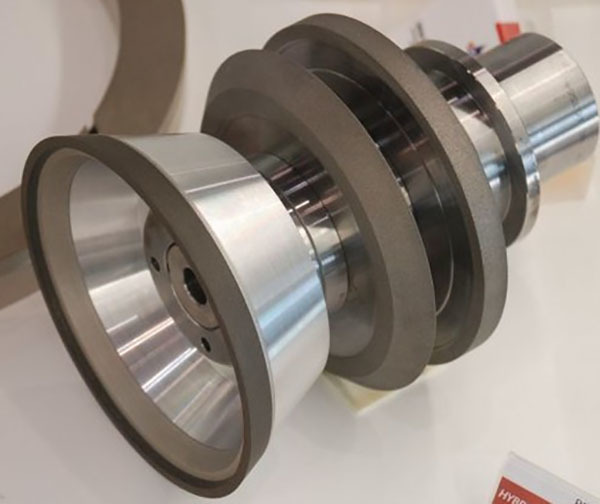

The CNC grinding wheels produced by our company are mainly used for slotting, shoveling, and end grinding of CNC cutting tools such as solid hard alloy, high-speed steel, stainless steel drill bits, milling cutters, and reamers. Among them, slotted grinding wheels have good sharpness and high durability, and can replace imported strong grinding wheels with excellent cost-effectiveness. It can be installed on 5-axis CNC tool grinders such as Sack in the United States, ANCA in Australia, Waler in Germany, Shutter in Germany, and Dingwei, with a hole diameter of 20 or 31.75mm.
