Double face grinding wheels
Product advantages:The application of double face grinding wheel:ceramics , cast iron , high speed steel , stainless steel , 20Cr , bearing steel , powder metallurgy , etc.
Category:
Contact
Product Description
The application of double face grinding wheel:ceramics , cast iron , high speed steel , stainless steel , 20Cr , bearing steel , powder metallurgy , etc.

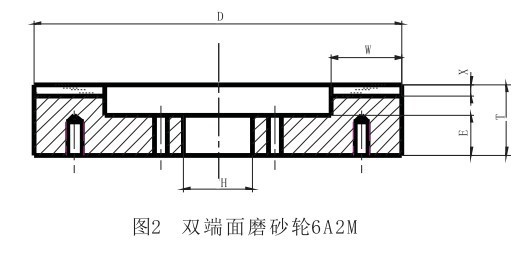

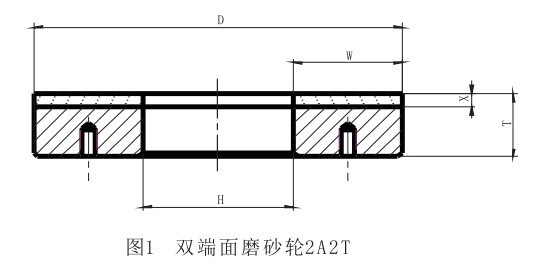

Double face grinding wheel specification Unit:mm
D | T | H | W | X | E |
305 | 25 | 152.4 | 76.3 | 3、5 | |
305 | 50 | 80 | 50 | 3、5 | 28 |
305 | 50 | 80 | 75 | 3、5 | 28 |
305 | 50 | 80 | 76.3 | 3、5 | 28 |
305 | 50 | 80 | 80 | 3、5 | 28 |
355 | 50 | 25 | 55 | 5 | 29 |
350 | 40 | 127 | 100 | 5 | 30 |
400 | 25 | 40 | 150 | 5 | 20 |
500 | 65 | 160 | 100 | 5 | 40 |
630 | 63 | 305 | 5 | ||
700 | 54 | 300 | 200 | 5 | |
750 | 75 | 305 | 5 | ||
840 | 60 | 340 | 250 | 7 |
